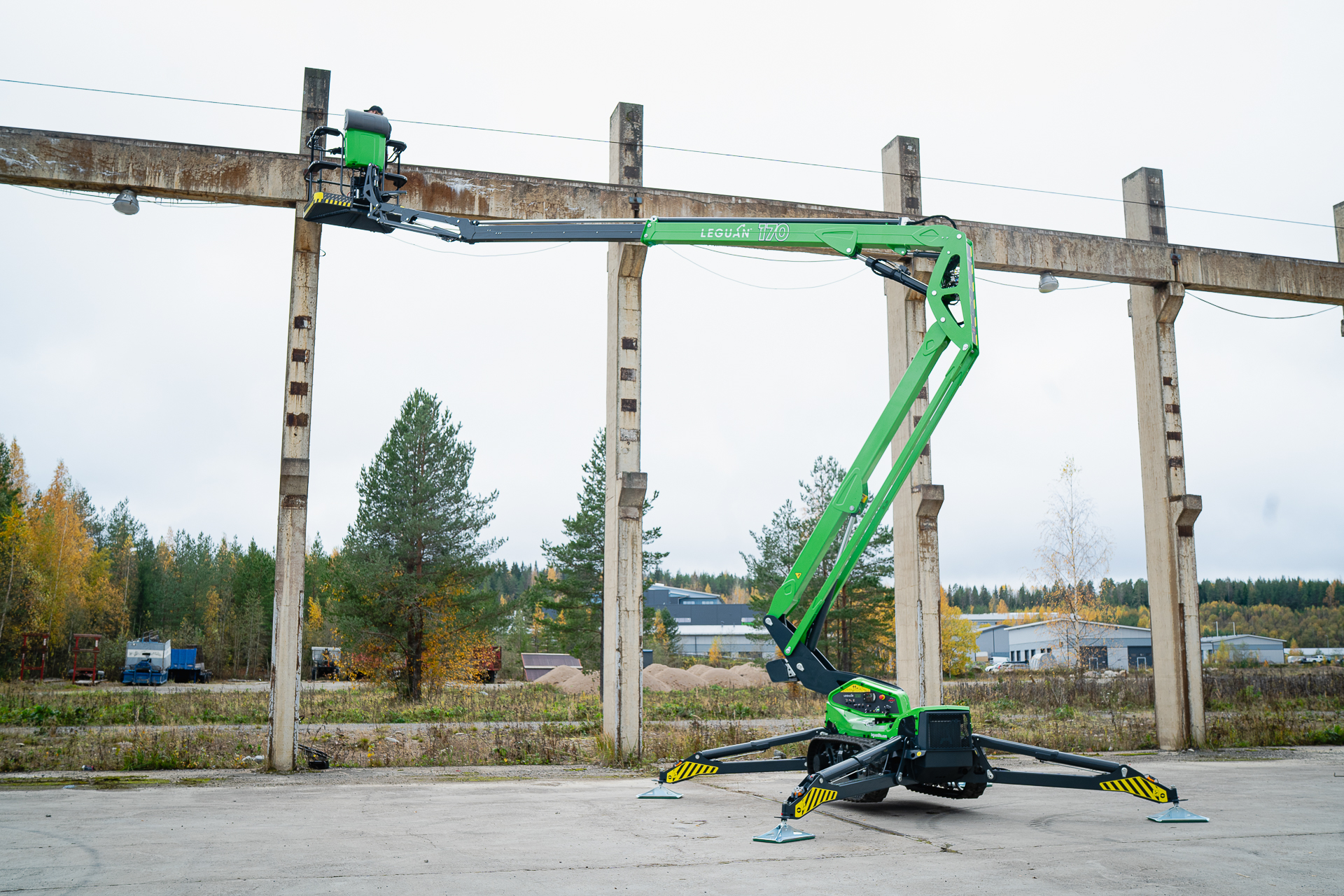

Leguan 170
- 16.8 m max. working height
- 8.9 m max. side reach
- 250 kg max. lift capacity
Premium performance engineered for efficiency.
Leguan 170 is the newest model completing the all-terrain spider
lift range. Designed with the same proven DNA as the flagship
Leguan 195, 225 and 265 models, the 170 delivers rugged Finnish
engineering and true off-road capability in a compact, highly
versatile package. Like all Leguan all-terrain series models, the
170 is designed to be fully driven and operated from the platform,
maximizing efficiency and ease of use on demanding job sites.
Download brochures
Fast set up
Start working immediately without any manual pre-operation tasks like adjusting outriggers, widening tracks, or lifting the jib. Just step onto the platform, attach the safety harness, and get to work!
Joystick

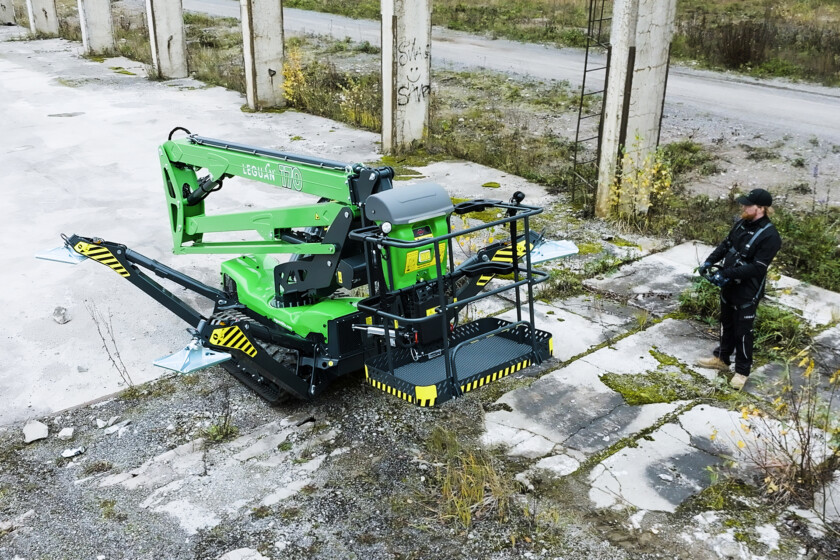

Simple and intuitive joystick controls guarantee smooth and precise boom movements. The ergonomic joystick is also used to control the lift’s track base.
Automatic levelling

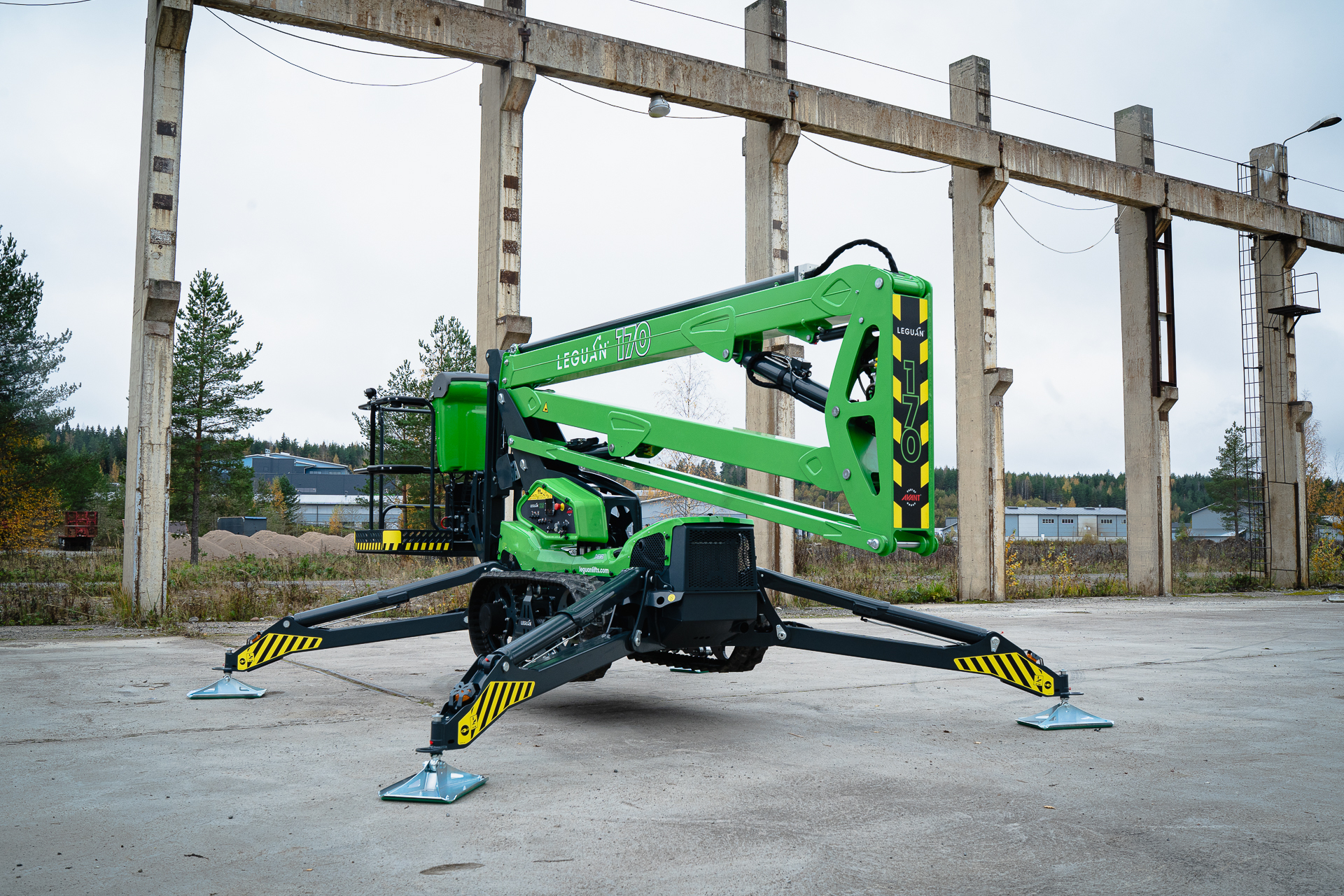

The 170’s automatic outrigger levelling makes setting up a quick and easy process. Our smart one-button levelling works reliably and quickly even in uneven terrains.
Harmonious design and easy-to-master user interface
The Leguan 170 is the newest model of the Leguan all-terrain series, joining the highly praised and capable 195, 225 and 265 models. This harmonized product line features a unique concept with unified design, identical user interface and standardized components, making it an ideal choice for rental companies and organizations managing big fleets of different sized lifts.
Market defining all-terrain capabilities
The 170 combines a low center of gravity and unmatched 45% gradeability. Combined with Leguan’s Elevated Driving Position (EDP) function makes this lift capable of conquering the most demanding work environments.
Who is the Leguan 170 for?
Combining ease of use, unparalleled speed, rugged design, and the intelligent Leguan EDX operating system, the Leguan 170 broadens the all-terrain series with an entry-level solution for professionals who need uncompromising efficiency and reliability in their work.
Technical information
| Max. lift capacity | 250 kg (2 persons) |
| Max. working height | 16.8 m |
| Max. platform height | 14.7 m |
| Max. side reach | 8.0 m (250 kg) – 8.9 m (120 kg) |

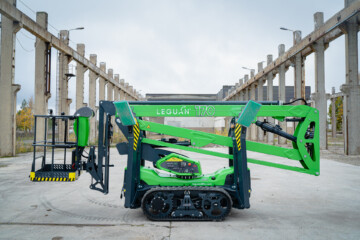

| Transport dimensions, L x W x H | 5.35 x 1.33 x 2.15 m |
| Platform dimensions | 1.33 x 0.75 m |
| Rotation of the platform | 110º (±55º) |
| Slewing | 440° |
| Gradeability | 45 % (25º) |
| Dimensions w/o platform, L x W | 4.63 x 1.25 m |
| Minimum outrigger support dimensions | 4.08 x 4.08 m |
| Required space for outrigger operation | 4.38 x 4.27 m |
| Max. slope for outriggers | 25% (14º) |
| Weight | 2,530 kg |
| Engine | Kubota 14 hp diesel or 230 V / 2.2 kW electric |
| Drive system: hydraulic | tracks |
| Max. drive speed | 2.9 km/h |
Features
LEGUAN spider lifts are always well-equipped and come with many advanced features as standard to ensure the highest efficiency. However, you can equip your own Leguan with many additional features to match the requirements of your line of work or job sites.
Some of the most popular optional features are the outrigger beacons that improve work safety. For the colder climates we recommend engine heater for the diesel engine. Inquiry more about the standard and optional features from your local Leguan dealer.
Standard features
- Leguan EDX
- 14 hp Kubota diesel engine
- USB power outlets on platform
- 230 V / 110 V electric motor + 230 V /110 V power outlets on platform
- Automatic engine RPM control
- Automatic levelling of the outriggers
- Proportional outreach monitoring system
- Electric rotation of the platform
- Home / back to work function
- JIB-boom with 120-degree operating range
- Battery powered emergency lowering system
- Lower controls with integrated service display
- Intuitive joystick control
- Elevated Driving Position (EDP)
Optional features
- Remote control for driving and outriggers
- LED spotlights for platform
- Tool trays on platform
- Outrigger beacons
- Hose to platform (air/water)
- Engine heater
- Non-marking tracks
- Narrow single person platform
- Custom colour
