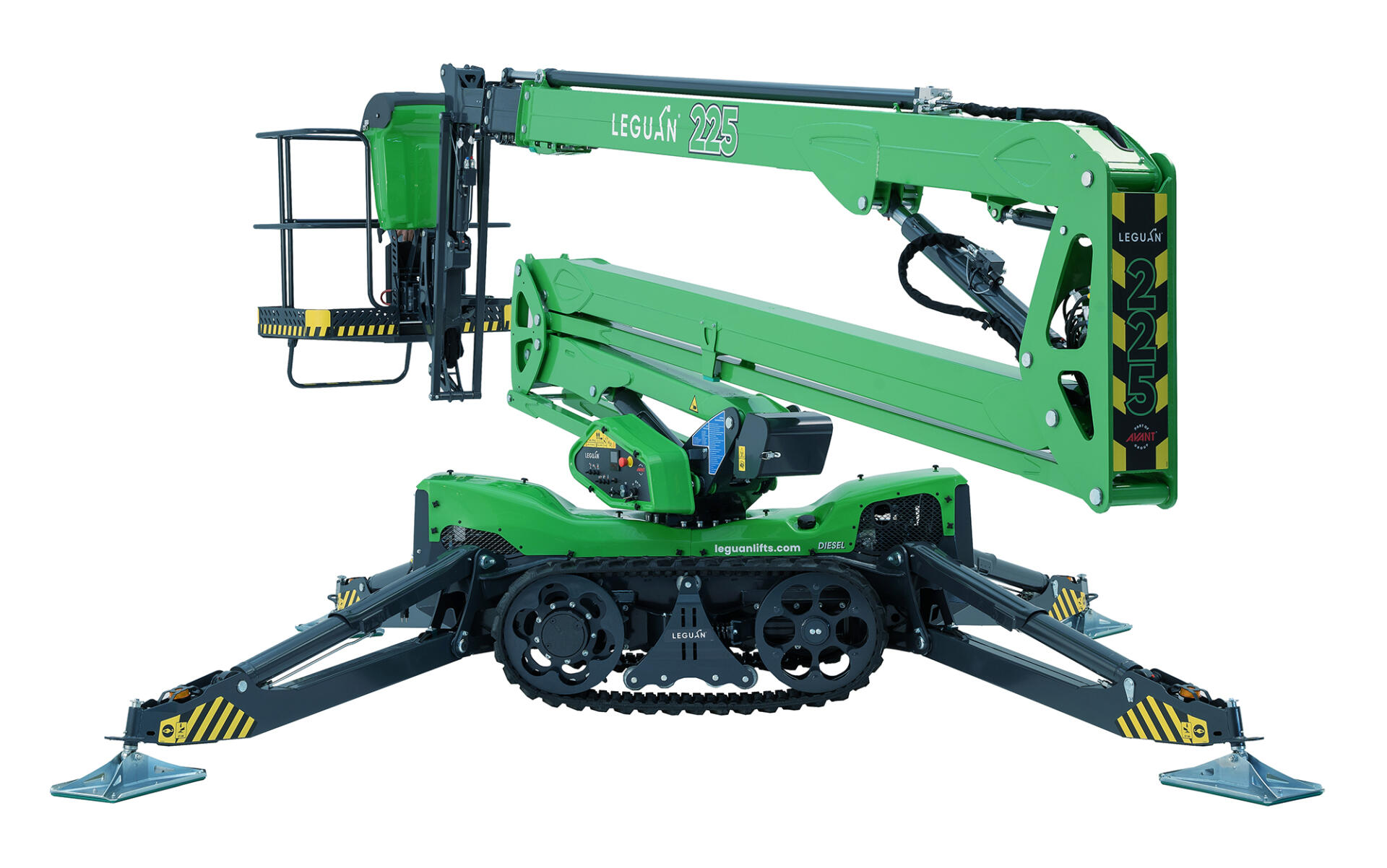

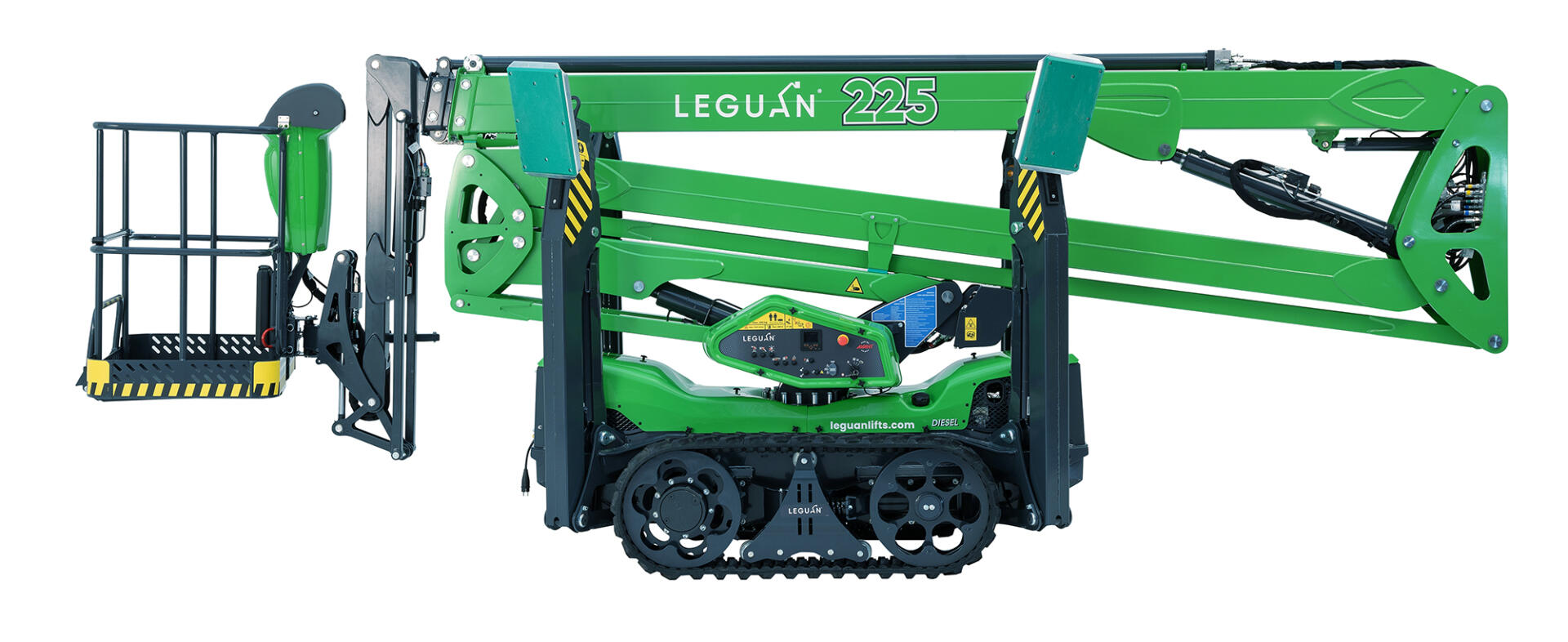

Leguan 225

  • 22,5 m max. working height
  • 11,2 m max. outreach
  • 250 kg max. lift capacity

All-terrain spider lift with unrivaled performance

Industry-leading all-terrain capabilities, a high-profile track platform and fast driving speeds make the next-generation Leguan 225 a perfect choice for even the most demanding environments. The spider lift’s boom is designed to maximize side reach even at high working heights, and a smart control interface guarantees quick and smooth movements.

Automatic levelling

The 225’s automatic outrigger levelling makes setting up a quick and easy process. Our smart one-button levelling works reliably and quickly even in uneven terrains.

Joystick controls

Simple and intuitive joystick controls guarantee smooth and precise boom movements. The ergonomic joystick is also used to control the lift’s track base.

Service display

Integrated in the lower control panel, the Leguan service display presents key information on the lift’s status, speeds up troubleshooting and enables technical support also remotely.

Thanks to our user-friendly joystick controls, controlling the boom structure is steady and simultaneous movements come naturally.

Smart controls for higher efficiency

Thanks to our user-friendly joystick controls, controlling the boom structure is steady and simultaneous movements come naturally. The lift’s smart features reduce malfunctions and increase efficiency so that you can focus on the project at hand.

Easy transporting to any location

The Leguan trailer enables you to transport your spider lift all the way to the desired location even with light vehicles. Attaching and detaching the lift is easy thanks to the included cargo straps and chains. The required towing capacity of the vehicle is 3,500 kilograms.

The Leguan trailer enables you to transport your spider lift all the way to the desired location even with light vehicles.
With a track platform designed for rough and challenging terrains, the Leguan 225 is at home in gardens, parks, forests, and construction sites.

What is the Leguan 225 best suited for?

With a track platform designed for rough and challenging terrains, the Leguan 225 is at home in gardens, parks, forests, and construction sites. The boom is shielded from external blows, falling branches and sawdust, making the 225 a great choice for arborists and construction workers alike.

Please accept statistics, marketing cookies to watch this video.

Technical information

Max. lift capacity250 kg (2 persons)
Max. working height22.5 m
Max. platform height20.5 m
Max. outreach9.1 m (250 kg) –
11.2 m (120 kg)
Transport dimensions, L x W x H6.03 x 1.33 x 2.2 m
Platform dimensions1,33 x 0,75 m
Rotation of the platform110º (±55º)
Slewing360º
Gradeability45% (25º)
Dimensions w/o platform, L x W5,27 x 1,25 m
Outrigger support dimensions4,08 x 4,08 m
Max. slope for outriggers25 % (14º)
Weight2950 kg
EngineKubota 21 hp diesel or
230 V / 2.2 kW electric
Drive system: hydraulictracks
Max. drive speed3,1 km/h
Leguan 225 technical specifications

Features

LEGUAN spider lifts are always well-equipped and come with many advanced features as standard to ensure the highest efficiency. However, you can equip your own Leguan with many additional features to match the requirements of your line of work or job sites.

Some of the most popular optional features are the outrigger beacons that improve work safety. For the colder climates we recommend engine heater for the diesel engine. Inquiry more about the standard and optional features from your local Leguan dealer.

Standard features

  • 21 hp Kubota diesel engine + 230 V electric motor
  • 230 V and USB power outlets on platform
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home function / Back to work position function
  • JIB-boom with 120-degree operating range
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Signal horn

Optional features

  • Remote control for driving and outriggers
  • LED spot lights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Leguan special trailer
